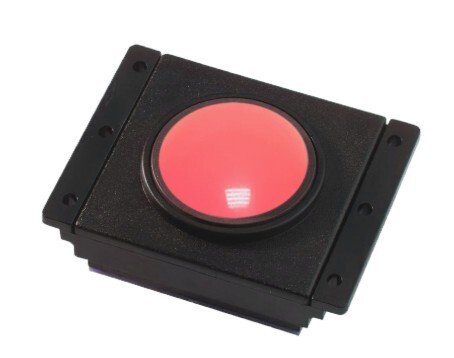

P38 Standard Backlit
The P38 Series backlit mechanical trackballs are high specification modules available with a variety of backlit ball colours, electrical outputs, and sealing options to IP65.
High-grade stainless steel shafts and bearings ensure a solid and precise pointer control while the patented floating seal technology limits ingress of aqueous solutions and particulates.
A choice of top plate and chassis configurations are available to provide various options on sealing, backlighting, tracking force and installation.
The unit has been designed to be back of panel mounted as part of OEM keyboards and consoles.
Features
- Sealing options up to IP65 (BS EN 60529)
- Outputs: USB, PS/2 (auto-select) and TTL Quadrature
- Smooth operation in rugged environments
- Stainless steel shaft and bearings
- Various top plate configurations providing sealing and tracking force options
- Various backlit ball colours
- Custom connector options
- External switch connections (USB & PS/2 Only)
Typical Applications
- Control systems
- Medical systems
- Navigation systems
- Compact keyboards
- Industrial consoles
- OEM custom solutions available
