R38 Desktop

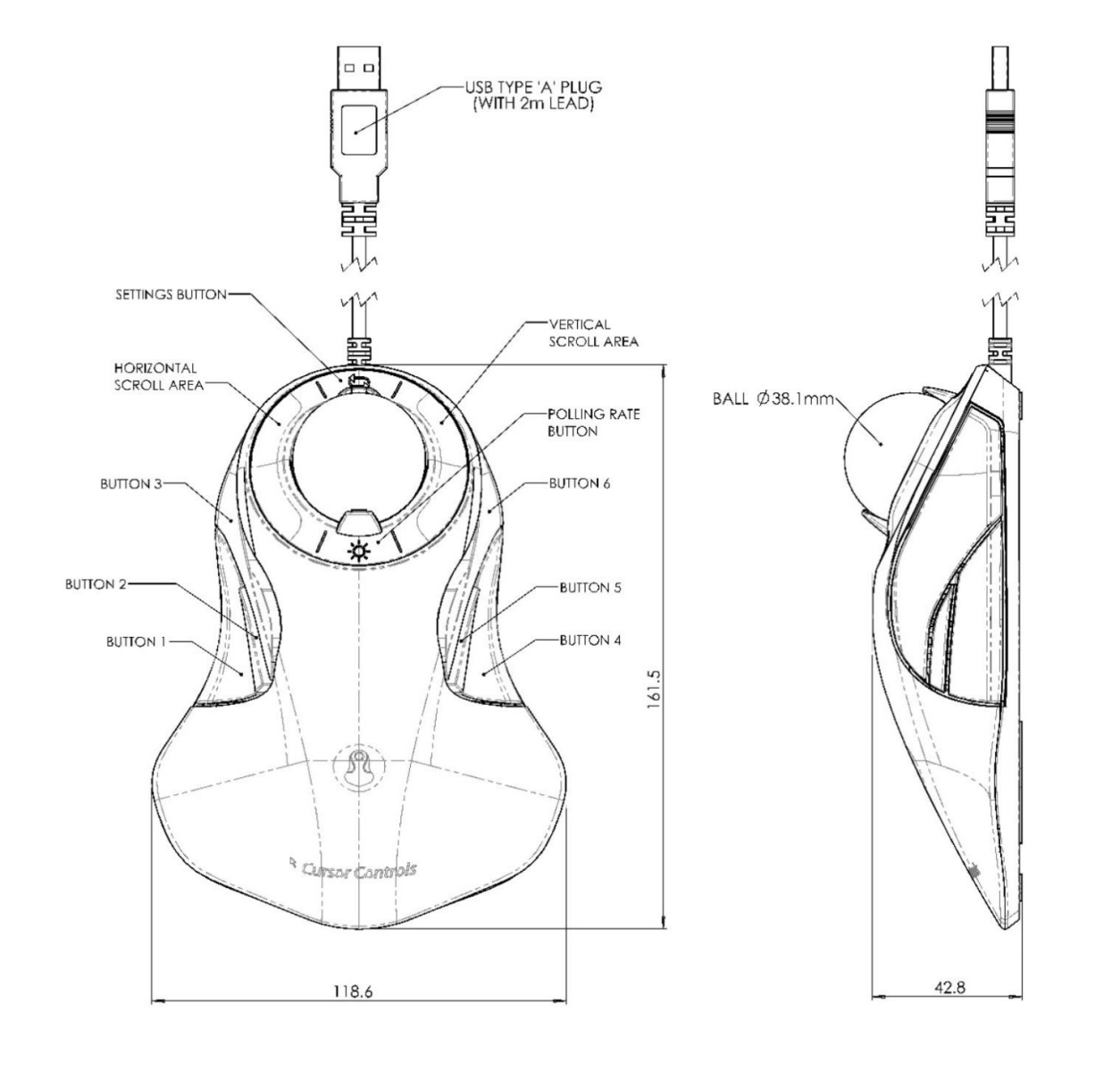

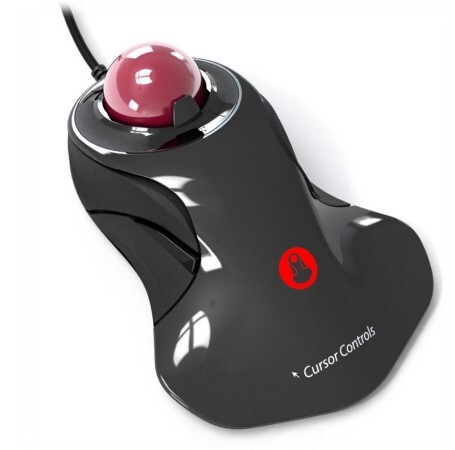

The R38 Series desktop trackball module is an ambidextrous, high specification device that incorporates the
latest Cursor Controls Ltd capacitive/touch technology.
The module combines the patented optical trackball technology with a capacitive, Z-axis scrolling ring allowing
vertical and horizontal scrolling.
To compliment these two technologies, the module also includes left, middle, right, forward, and backward
buttons and a resolution button allowing the user to select from five resolution configurations. The user can also
switch easily between left and right-hand configurations via a designated button.
The solid-state design prevents entry of dust and dirt, allowing easy cleaning of the trackball area once the ball
is removed.
The unit has been designed to be a freestanding desktop device and optimises desk space when compared to a
mouse
Features
▪ Infra-red optical navigation technology.
▪ Integrated left, middle, right, forward and backward switch functionality.
▪ 38mm ball for precise cursor control.
▪ Horizontal and vertical Z-axis scrolling.
o 2 x Z-axis scrolling modes (linear and continuous), selectable via a single dedicated button
▪ 5 x resolution configurations, selectable via a single dedicated button
o High and low toggle modes within each resolution configuration
▪ 12 x RGB colour modes (including OFF) selectable via a single dedicated button
▪ Left and right handedness configurations, selectable via a single dedicated button
▪ USB output.
▪ Wired USB cable providing high reliability and avoiding the need for batteries
Typical Applications
▪ Gaming
▪ Professional applications
