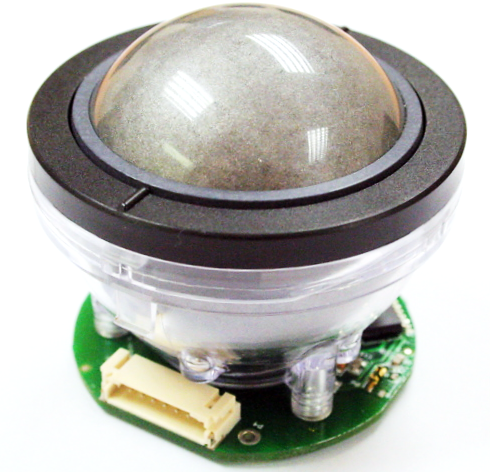

X50 Trackball - Skeletal
Utilizing the latest and most advanced infra-red optical tracking technology, the X50 Series top mount optical Trackerball™ is an extremely high specification, contact-less device, ideal for the most demanding of cursor control applications.

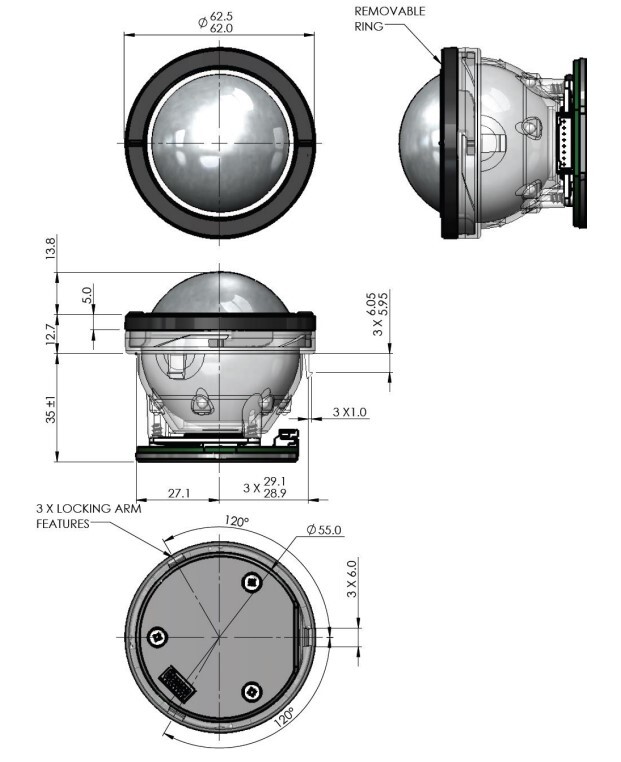

The trackball has been designed to be mounted from the top side of the keyboard/panel without the need for any fixings or fasteners, providing reduced integration costs and assembly/installation times.
The optical tracking engine provides accurate cursor motion at all speeds, combining the benefits of solid state sensing (no moving parts except the ball) with the aesthetics, functionality and performance associated with the Cursor Controls product range.
The design incorporates a removable top ring as standard to allow for easy cleaning, decontamination, sterilisation and maintenance - ensuring continued optimum performance and operation under the harshest of conditions.
The X50 Series trackballs are available with a variety of electrical outputs and tracking force options.
Features
- Solid state sensing technology – infra-red optical tracking engine
- Top mount installation
- Removable top ring and ball for easy maintenance & decontamination
- Sealing up to IP68
- Output: Combo (USB & PS2 auto-select) or TTL Quadrature
- Smooth operation in rugged environments
- Various top plate configurations
- Various ball colours
- Custom connector options
- VX3™ – integrated zoom feature for scroll wheel functionality
- External Switch Connections (USB/PS2 only)
Typical Applications
- Medical systems
- Marine systems
- Custom keyboard applications
- Industrial consoles
- OEM custom solutions available
